How much current is needed to trip a GFCI

It takes only 5 mA (0.005 A) of current leakage from the hot wire to the ground to cause a GFCI to trip. A small amount of leakage current may be difficult to avoid in some normal circuits.

Will a 15 amp GFCI trip if overloaded?

A GFCI (Ground Fault Circuit Interrupter) device only trips when there is a difference between the amount of current leaving it and the amount returning to it. … So a GFCI receptacle outlet does not trip due to an overloaded circuit.

At what current does a Class A GFCI typically trip?

There is a Class A GFCI that trips when a ground fault current exceeds 5 milliamps and there is a Class B GFCI that trips when a ground fault current exceeds 20 milliamps.

What will make a GFCI trip?

If the GFCI detects a ground fault leakage of 5mA it will trip. This leakage is caused by a hot wire touching the ground somewhere on the electrical line such as an appliance or even the outlet itself. This can be caused by water, wires touching, dust or debris, etc.

At what AMP does a GFCI open?

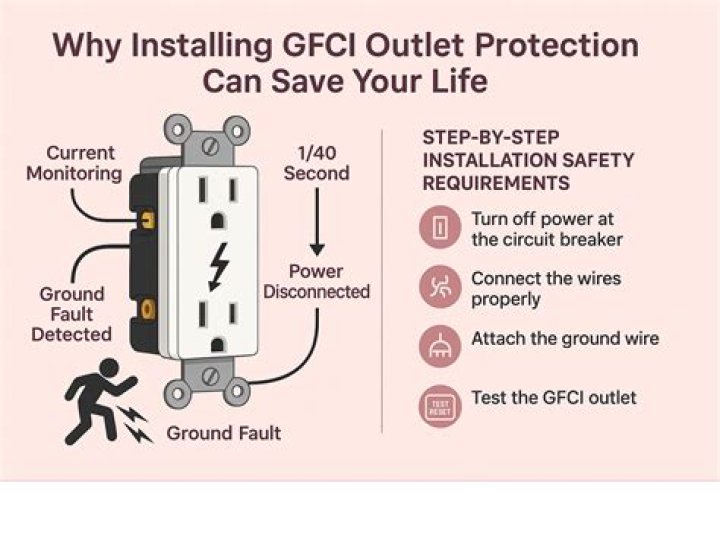

A GFCI monitors the amount of current flowing from hot to neutral. If there is any imbalance, it trips the circuit. The GFCI senses a mismatch as small as 4 or 5 milliamps, and it can react as quickly as one-thirtieth of a second.

Will water cause GFCI to trip?

If the problem GFCI is an outdoor receptacle or an indoor outlet that was exposed to water in some way, moisture inside the receptacle box could be causing the GFCI to trip. A wet GFCI will trip regardless of what is plugged into it and may continue to trip even if there is no visible moisture inside the box.

Does GFCI prevent breaker from tripping?

Install GFCI Outlets While these are designed to protect you when using electricity in higher-risk areas like your bathrooms or kitchen, they can also help you prevent your circuit breakers from tripping frequently.

Is there a difference between GFI and GFCI?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

When should a GFCI trip?

It takes only 5 mA (0.005 A) of current leakage from the hot wire to the ground to cause a GFCI to trip. A small amount of leakage current may be difficult to avoid in some normal circuits.

Will a microwave trip a GFCI?

If your microwave is plugged into a GFCI breaker outlet and it keeps tripping, the outlet itself may be at fault. Try resetting the GFCI outlet. If the GFCI keeps tripping, there could be something else on the circuit causing the problem or you may have a faulty GFCI.

Article first time published on

How many GFCI are in a circuit?

You only need 1 GFCI outlet per circuit (assuming it’s at the beginning of the line and the rest of the outlets are loads). They are correctly wired in parallel – if they were in series, you wouldn’t get the correct voltage at the other outlets when there is any type of load present.

Can a extension cord cause GFCI to trip?

Excessive lengths of temporary wiring or long extension cords can cause ground fault leakage current to flow by captive and inductive coupling. The combined leakage current can exceed 5 ma, causing the GFCI to trip.

What causes nuisance tripping of GFCI?

There are too many appliances being protected by the GFCI. Sometimes tripping occurs when a GFCI circuit breaker is protecting multiple downstream receptacles. If several appliances are connected to the GFCI device, the cumulative effect of the appliance leakage currents may trip the GFCI.

What are the 3 types of GFCI?

The three most common types of GFCIs are the outlet, the circuit breaker and the portable one.

How do I make my GFCI not trip?

Unplug all appliances on that outlet’s circuit.
Push the reset button.
Plug in one appliance at a time until the GFCI trips. …
Unplug appliances that were on before the GFCI tripped and see if the last appliance that you plugged in still trips the GFCI. …
Replace or repair the appliance that tripped the outlet.

How do you stop a power trip?

Unplug electrical appliances that are not in use. …
Spread out heated styling tools. …
Only use extension cords for added length. …
Use LED Christmas lights. …
Use multiple outdoor circuits. …
Know your amp usage.

How do you know if a GFCI outlet is bad?

Look for GFCIs in bathrooms, kitchens, basements, garages and on the home’s exterior. …
If the GFCI won’t reset or the button doesn’t pop out when you press the “test” button, there may be no power to the GFCI or you may have a bad GFCI.

Can a surge protector trip a GFCI?

A surge protector can cause the GFCI outlet to trip. A surge protector can start leaking current because of a surge, causing the GFCI outlet to respond because of the resulting imbalance in the flow of current. … Don’t count on the surge protector to prevent the GFCI outlet from tripping.

Should a refrigerator be on a GFCI circuit?

Residential Kitchen In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There’s no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.

Why does my kitchen GFCI keep tripping?

Circuit overload occurs when more amperage flows through an electric wire or circuit than it can handle. This may happen if you connect malfunctioning or defective appliances. Loose, corroded wires or connections may also be to blame. Once the GFCI outlet senses an overload, it trips or “breaks” the circuit.

Which is better GFCI or AFCI?

The AFCI should not be confused with the GFCI. The AFCI (Arc Fault Circuit Interrupter) protects against fires caused by arcing faults. … The GFCI (Ground Fault Circuit Interrupter) is designed to protect people from severe or fatal electric shocks.

How much current does microwave draw?

Domestic Portable ApplianceAmps UsedWatts UsedDishwasher10.02200Iron133000Microwave6.51500Vacuum cleaner9.02000

Can I plug a fridge and microwave into the same outlet?

You can’t power a refrigerator and microwave on the same circuit. … According to the 2020 version of the NEC, you can’t power a microwave and refrigerator on the same circuit because each of these appliances requires a dedicated circuit, which is one shared by no other appliances or lights.

Can I plug my microwave into a regular outlet?

Microwave Oven Circuit Some are countertop models, and other microwaves mount above the stove. Although it’s not uncommon to see microwave ovens plugged into standard appliance outlets, larger microwave ovens can draw as much as 1500 watts, and these need their own dedicated circuits.

Can you put 2 GFCI on the same circuit?

To save money, you can put in a single GFCI and then wire additional standard outlets to the “LOAD” output from the single GFCI. … This provides the same protection as having a GFCI at each location.

How many outlets can 1 GFCI protect?

There’s no limit. A standard GFCI will protect up to 20 amps, drawn from any combination of receptacles, either the built-in one or any number of additional ones connected to its load terminals.

Does power go to line or load on GFCI?

The “line” wires are the incoming power from the breaker box and the “load” wires are the outgoing power that travels down the circuit to the next outlet.

What causes nuisance tripping?

Nuisance tripping occurs when an RCD trips when the residual current flowing in the circuit is less than its rated residual operating current. This may be caused a current surge or voltage surge or possibly noise on the installation. … Inrush currents are another common event that can cause nuisance tripping.

Can you plug a GFCI into a GFI?

You can plug a GFCI into a GFCI outlet. … If you have a GFCI-protected appliance, you don’t need GFCI receptacles. However, if your house has GFCI protected outlets, you can plug a device with onboard GFCI protection into those outlets.

Is there a GFCI breaker?

Many GFCI options are available today, but the two most common types are GFCI circuit breakers and GFCI receptacles. You do not need both on the same circuit. A GFCI circuit breaker protects the entire branch circuit and everything connected to it, be it receptacles, lights, appliances, etc.
